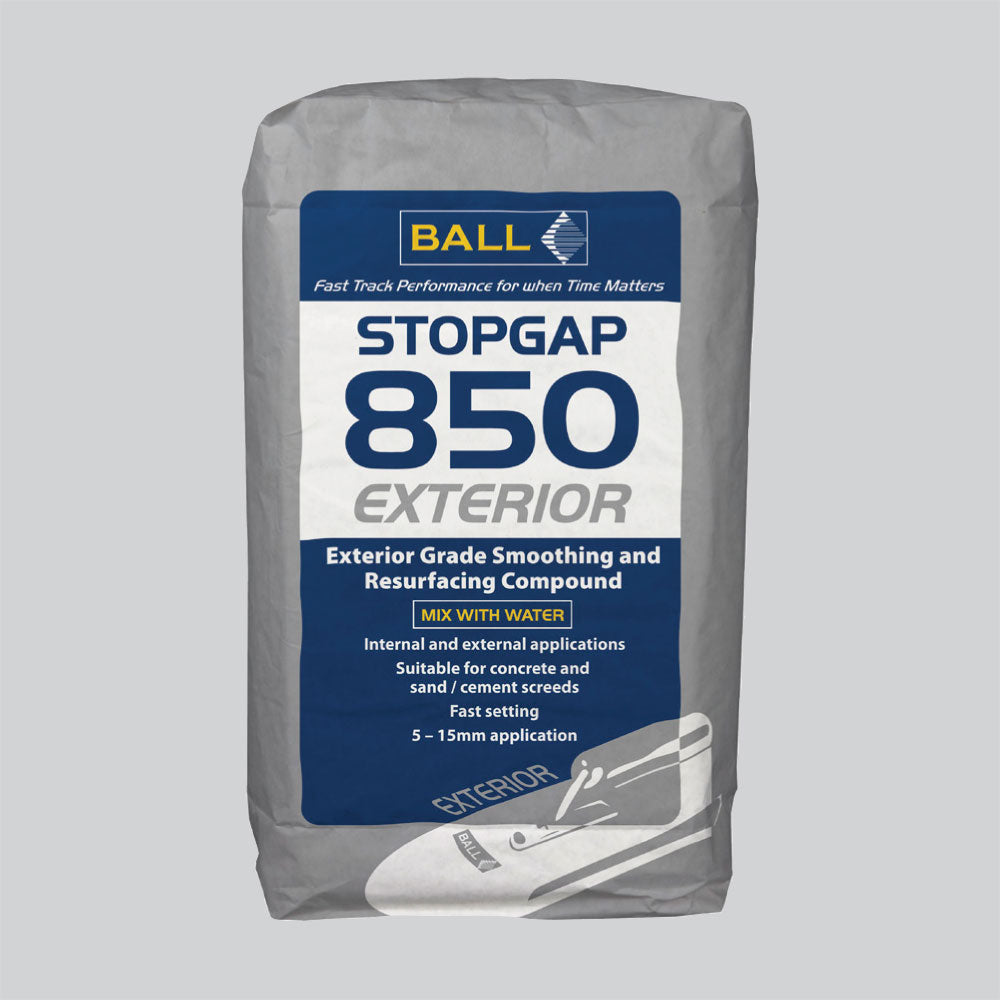

STOPGAP 850

STOPGAP 850 is a non structural exterior grade smoothing compound for use in light to medium duty applications to smooth and level rough or mechanically damaged concrete or sand / cement screeds.
STOPGAP 850 is ideally suited for smoothing areas such as balconies, patios, garages and walkways and is unaffected by rain or frost when set and dried. It is also suitable for smoothing subfloors prior to the application of a suitable non-slip coating or external covering such as artificial grass.
STOPGAP 850 is also suitable for internal application over damp, uneven concrete and sand/cement screeds, prior to application of STOPGAP Waterproof Surface Membranes and STOPGAP ISOLATOR MEMBRANE.
STOPGAP 850 can be left as a stand-alone exterior wearing surface.To give a more natural surface finish and to reduce the potential for slip, if left uncovered, it is recommended that a scratch coat is applied to the surface and brush finished to a textured profile.
STOPGAP 850 can also be pump applied up to 900m2 per day, dependent upon manpower, thickness applied and equipment used.
COVERAGE
A 25kg bag of STOPGAP 850 mixed with 4.25 litres of clean water will cover approximately 3m2 at a thickness of 5mm.
TECHNICAL INFORMATION
FEATURES
• Suitable for exterior use
• Suitable for use under STOPGAP
Waterproof Surface Membranes and
STOPGAP Isolator Membrane
• Protein free
• Water mix
• Application thickness from 5-15mm • Can be filled up to 50mm
• Can be laid to falls
BS EN1504-3: 2005
When used as a non-structural repair PCC mortar for the repair principles 3 (CR) and 7 (PR), repair methods 3.1 and 7.2, STOPGAP 850 is in conformity with the relevant type requirements of BS EN 1504-3 2005.
PACKAGES
25 kg lined paper sacks.
HOW MUCH MATERIAL?
Note: Coverage rates for 5-15mm are based on 4.25 litres water addition and up to 50mm based on 4.0 litres water addition.These figures will vary according to the condition of the subfloor.
Classification to BS EN 1504-3
Class R2
Working time @ 20°C
10 – 15 minutes
Walk on hardness time @ 20°C
2 hours
Compressive strength N/mm2
(EN 12190) 28 days
> 25 N/mm2
Flexural strength N/mm2
(EN 196-1) 28 days
> 6 N/mm2
Density (EN 12190)
1900 kg/m3
Chloride ion content (EN 1015-17)
≤ 0.05%
Adhesive bond (EN 1542)
≥ 0.8 N/mm2
Restrained shrinkage/ expansion (EN 12617-4)
≥ 0.8 N/mm2
Skid resistance (EN 13036-4)
Uncoated
Class II > 40 units dry
Scratch coat
Class III > 55 units wet
Capillary absorption (EN 13057)
≤ 0.5 kg/m2.h-0.5
Abrasion resistance (EN 13892-4)
AR 1.0
Flow properties using 30mm ø x 50mm flow ring (BS EN 12706)
100 - 120mm
Consumption per mm thickness
1.72 kg/ m2
Application thickness: Unfilled Filled (for repair)
5 – 15mm Up to 50mm
